Commercial
Frozen Drink
MachineCommercial Frozen Drink Machine

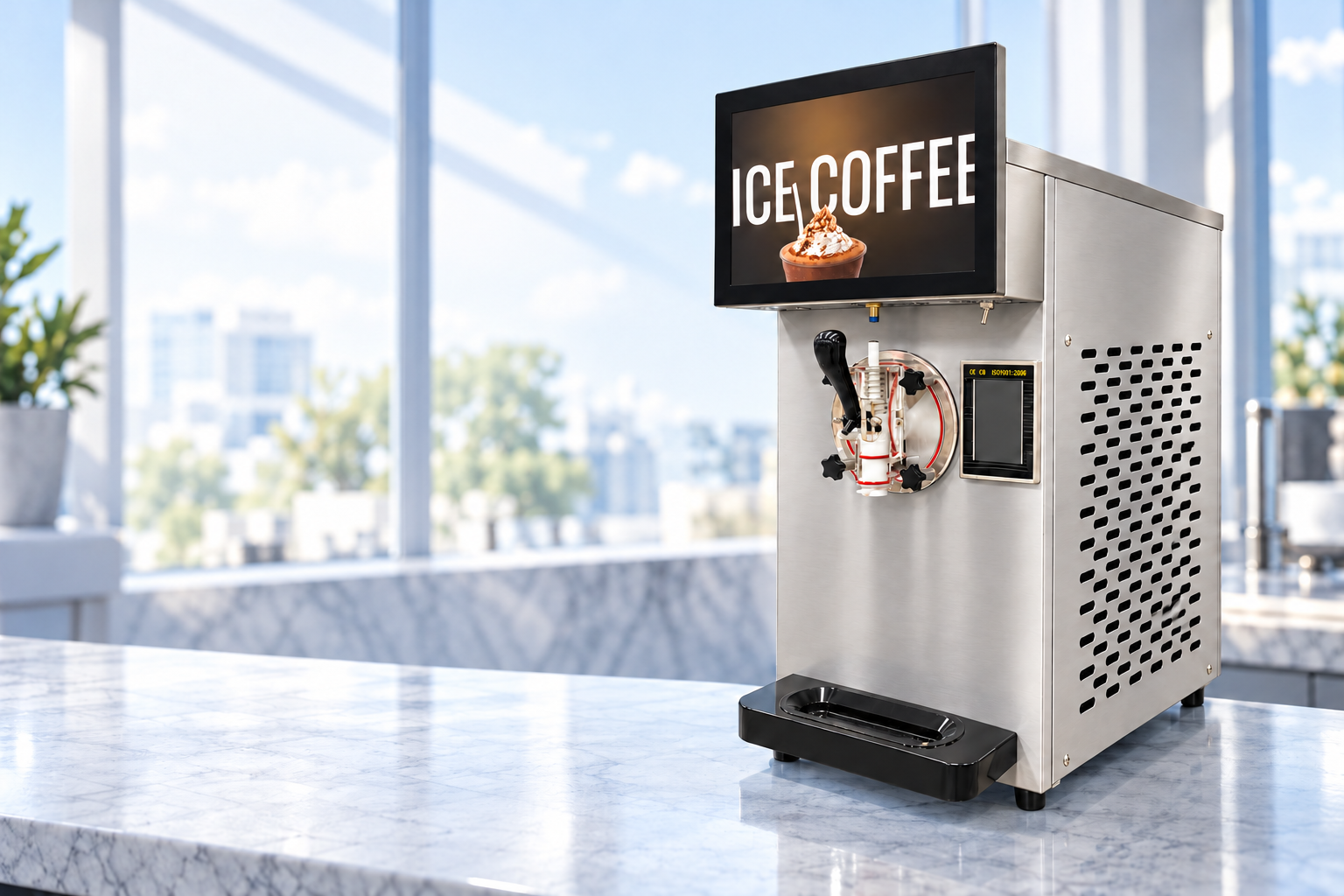

A single-cylinder frozen drink machine
with a 20 L mix hopper, 5 L freezing cylinder
and catalogue-rated output of 40–50 L/h.
Price on request
Catalogue-rated output; actual production varies with recipe and operating conditions.

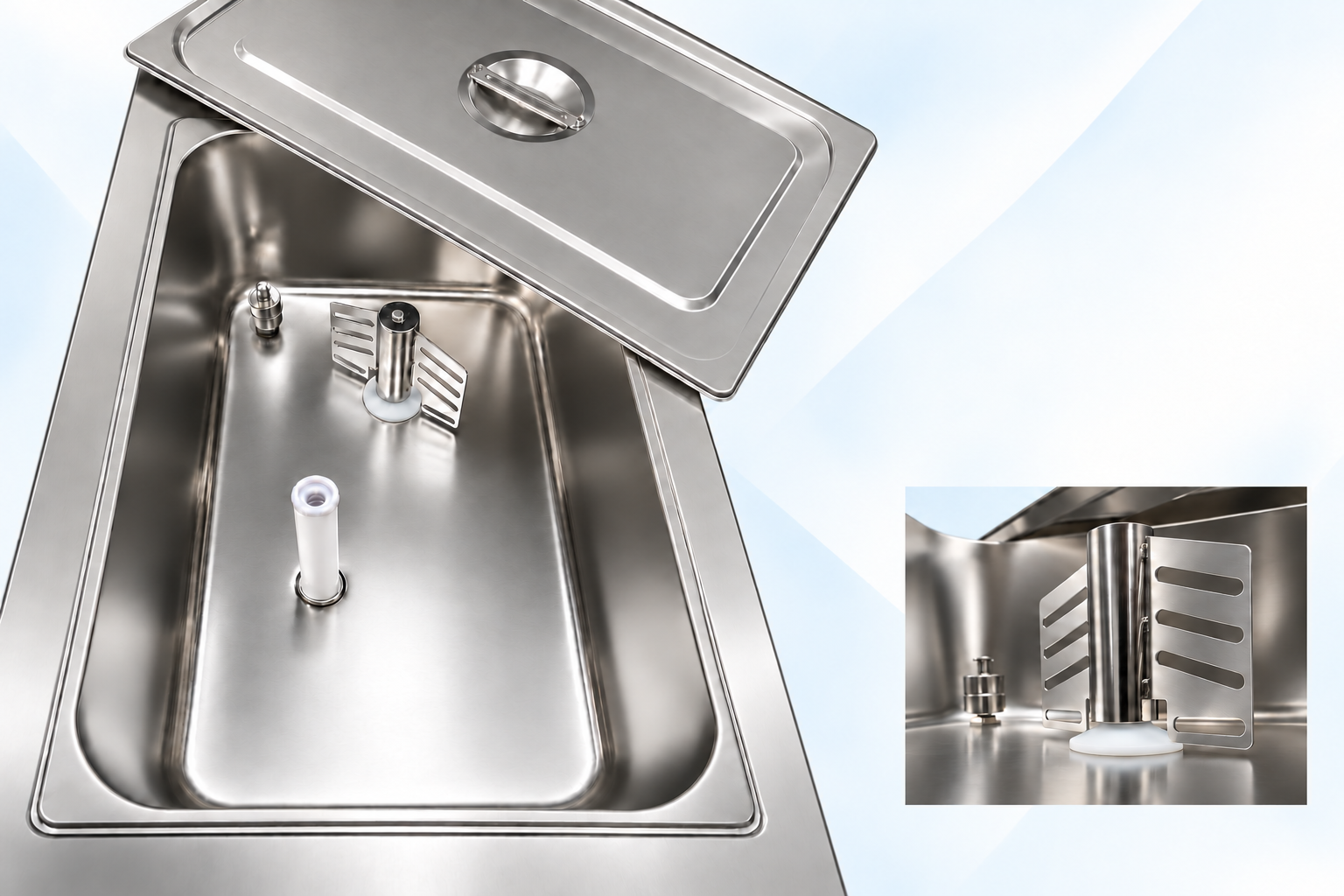

20 L hopper.
5 L freezing
cylinder.20 L hopper. 5 L freezing cylinder.
Keep the two capacities clear: 20 L for the mix hopper and 5 L for the freezing cylinder.
Controls and
dispensing,
within reachControls and dispensing, within reach

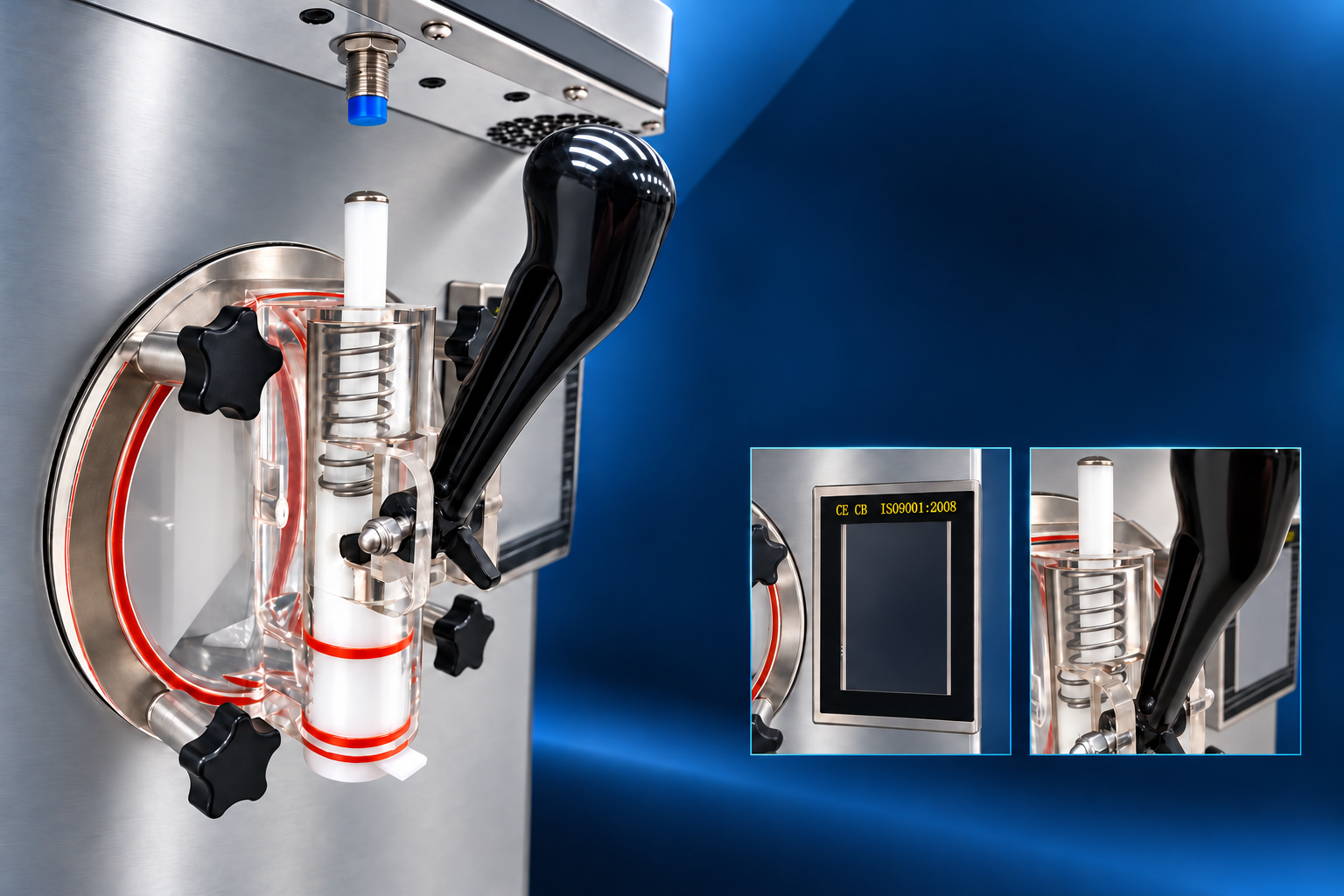

Touchscreen control, a transparent dispensing door and a push-down handle with automatic return. A front lightbox completes the machine’s display area.
Transparent
dispensing door
Push-down handle
Expand your menu with
the optional 6-in-1 upgradeExpand your menu
with the optional
6-in-1 upgrade
The optional 6-in-1 upgrade covers frozen daiquiris, granita slush, sorbet, milkshake, ice cream and gelato. Confirm recipe suitability and configuration when ordering. A front-mounted milk shaker is available as a separate option.
AI-generated serving illustrations; not tested product output.
Specifications
and
configuration
optionsSpecifications and configuration options
Choose the voltage, frequency and refrigerant configuration for your order. The electrical ratings describe separate builds. Confirm the required combination before ordering.
| Configuration | Single cylinder |
|---|---|
| Mix hopper | 20 L |
| Freezing cylinder | 5 L |
| Rated production | 40–50 L/h |
| Rated power | 1600 W |
| Voltage options | 220 V / 110 V |
| Frequency options | 50 Hz / 60 Hz |
| Refrigerant options | R22 / R410A / R290A |
| Dimensions (catalogue order) | 390 × 770 × 810 mm |
| Net weight | 75 kg |
Catalogue-rated output; actual production varies with recipe and operating conditions.
Questions
before you
orderQuestions before you order
Review the capacity, upgrade and installation questions below.
What is the difference between the 20 L and 5 L capacities?
20 L is the mix-hopper capacity; 5 L is the freezing-cylinder capacity. They describe different parts of the machine.
Is the 6-in-1 function included as standard?
No. It is an optional upgrade. Confirm the intended products, recipes and configuration before ordering.
Is the front-mounted milk shaker included?
The front-mounted milk shaker is a separate option. Confirm its inclusion in the equipment quotation.
Which electrical and refrigerant options are available?
Voltage options are 220 V and 110 V; frequency options are 50 Hz and 60 Hz. Refrigerant options are R22, R410A and R290A. Confirm the required combination for the ordered machine.
Is 40–50 L/h a guaranteed output for every recipe?
40–50 L/h is the catalogue-rated range. Actual production depends on recipe and operating conditions; discuss the intended drink and service demand before ordering.
What space and cleaning information should I request?
The listed dimensions are 390 × 770 × 810 mm, and net weight is 75 kg. Request the applicable installation drawing and operating manual to confirm orientation, clearances and cleaning procedures.
Plan your
frozen drink setupPlan your frozen drink setup
Tell us your destination, drinks menu, expected demand and preferred electrical and refrigerant configuration. We’ll help confirm the specification and optional upgrades for your order.
