Milk Pasteurizer
Heating and cooling. In one machine.
Bring heating and cooling into one equipment workflow, with 304 food-grade stainless steel and a choice of air or water cooling.
Price on request
30 L / 60 L capacity options
Built around your
heating and cooling workflow
Heat and cool
Handle both stages within one machine workflow.
304 stainless steel
Specified with 304 food-grade stainless steel construction.
Cooling to suit your site
Select an air-cooled or water-cooled configuration to match your installation plan.
A closer look
at the machine

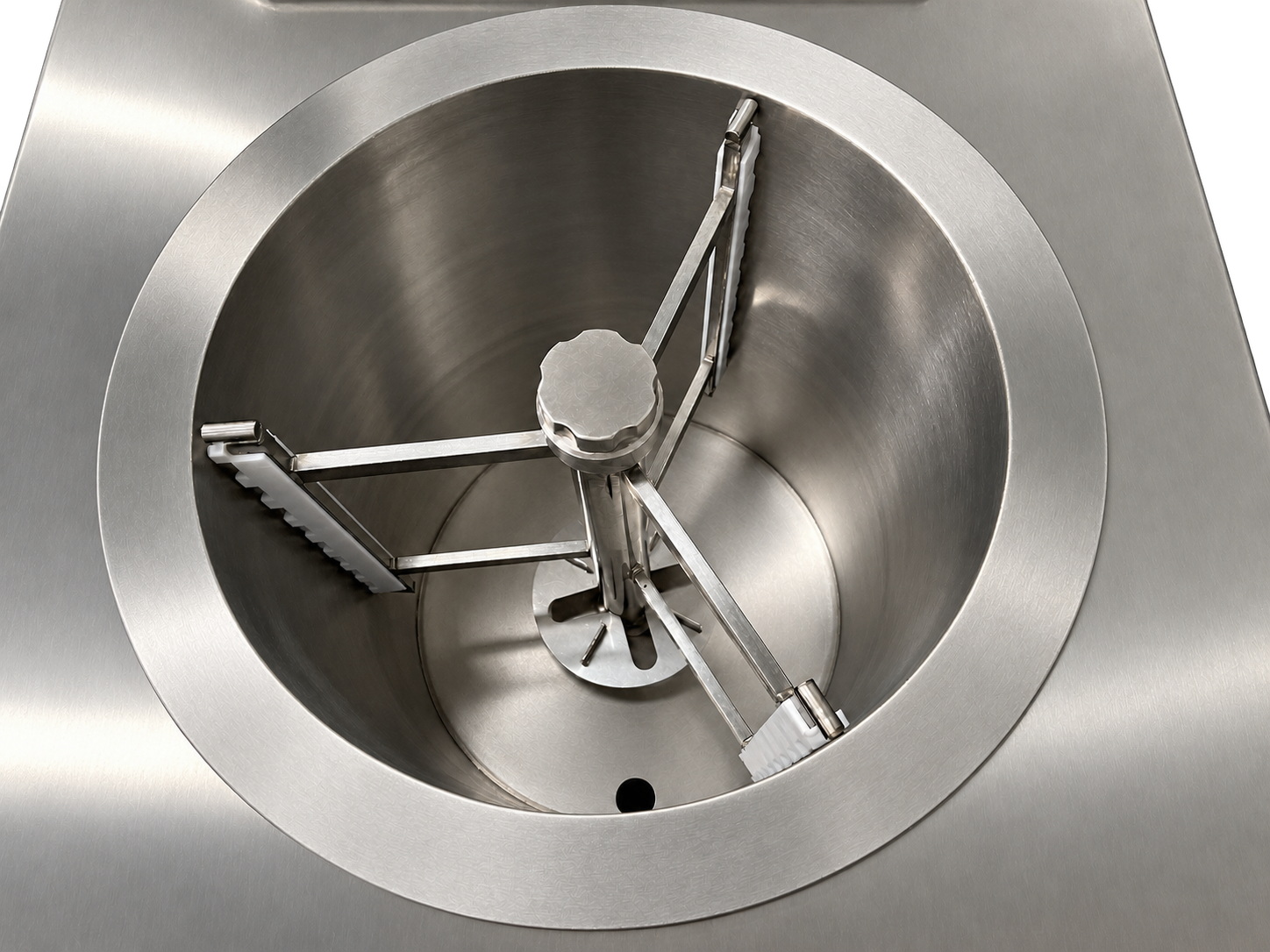

Vessel and mixing assembly
View the round vessel and the mixing assembly shown inside.

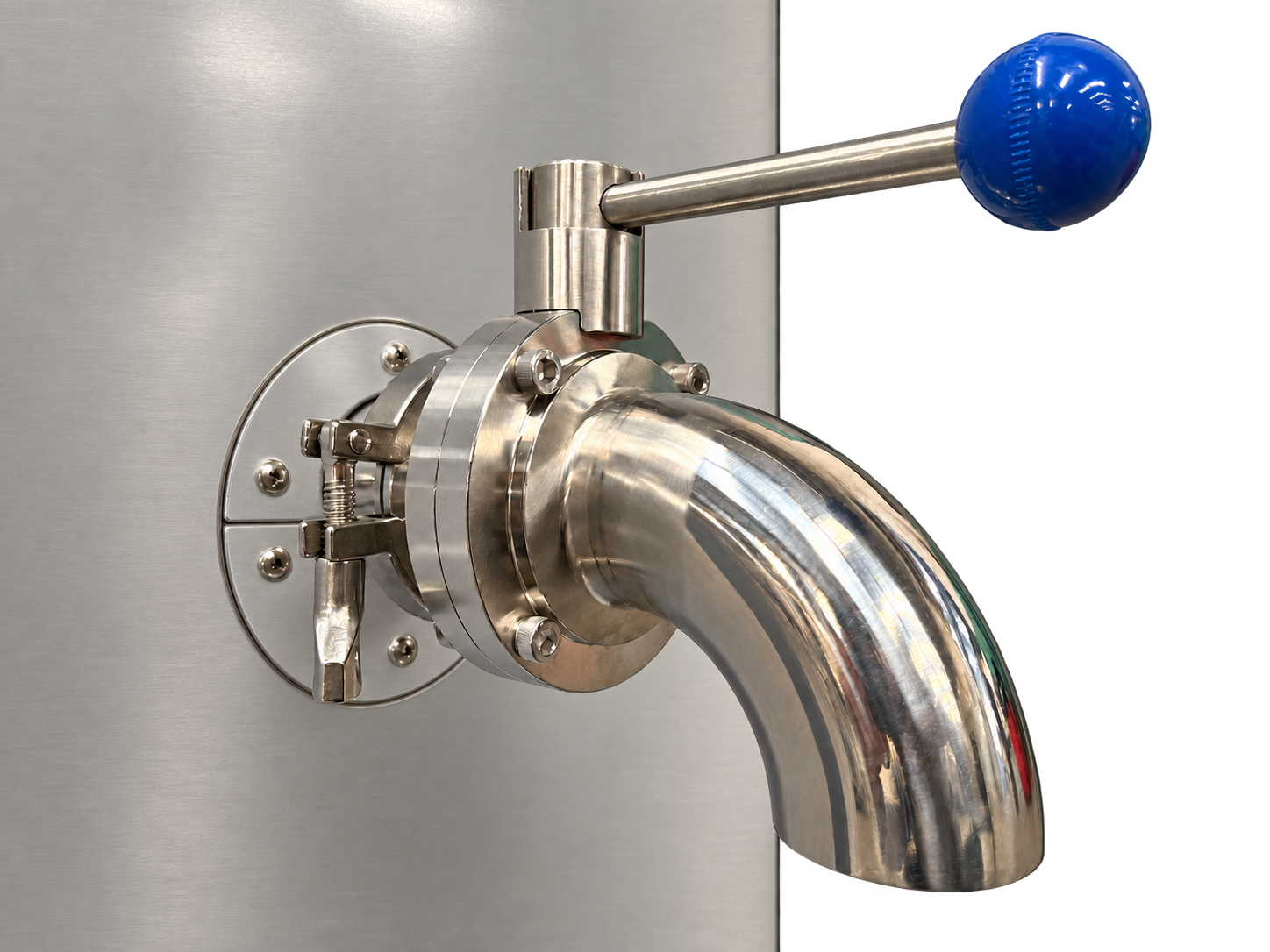

Front discharge outlet
A front-mounted outlet with a manual handle.

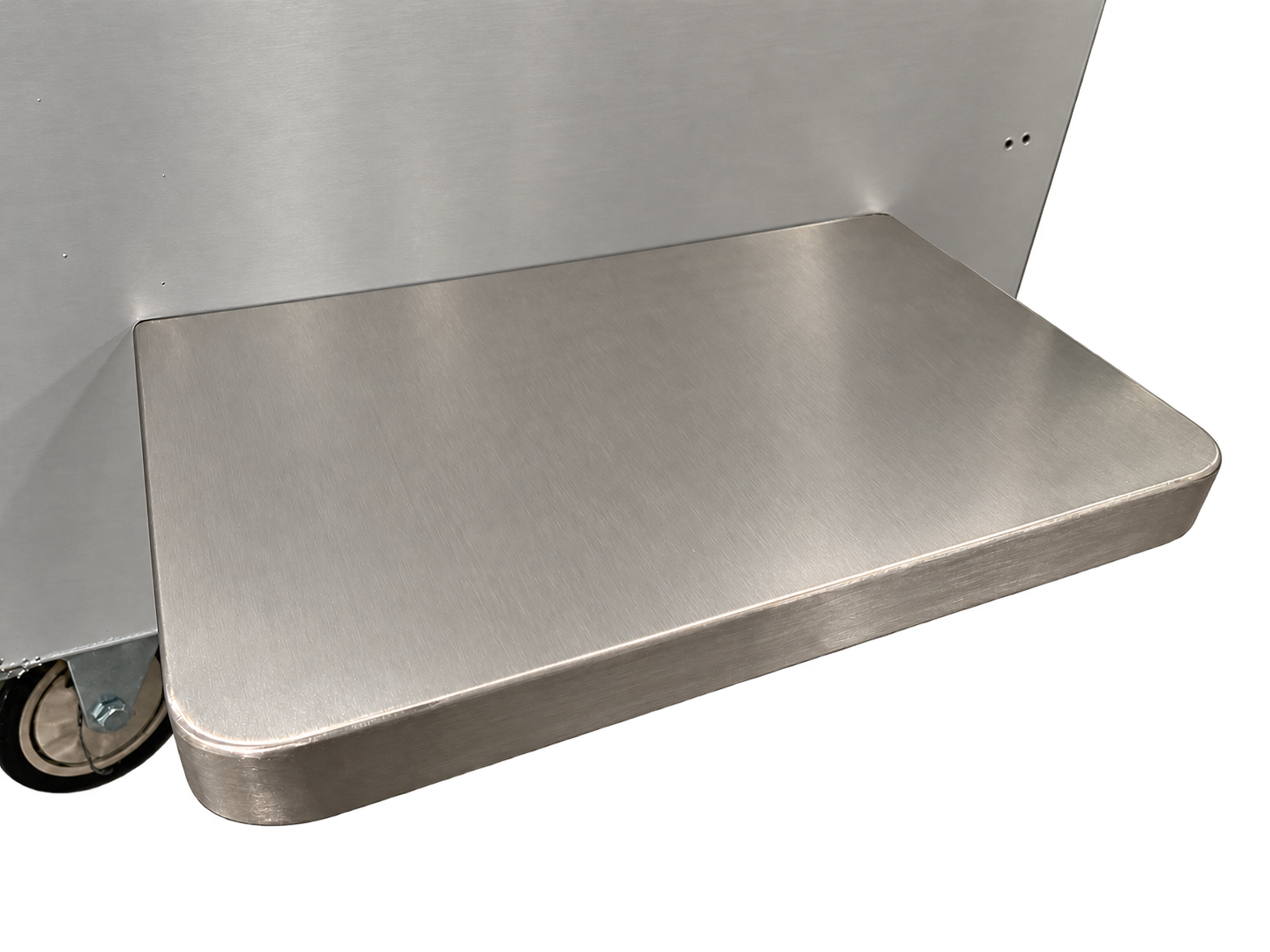

Receiving shelf
A shelf positioned below the discharge outlet.

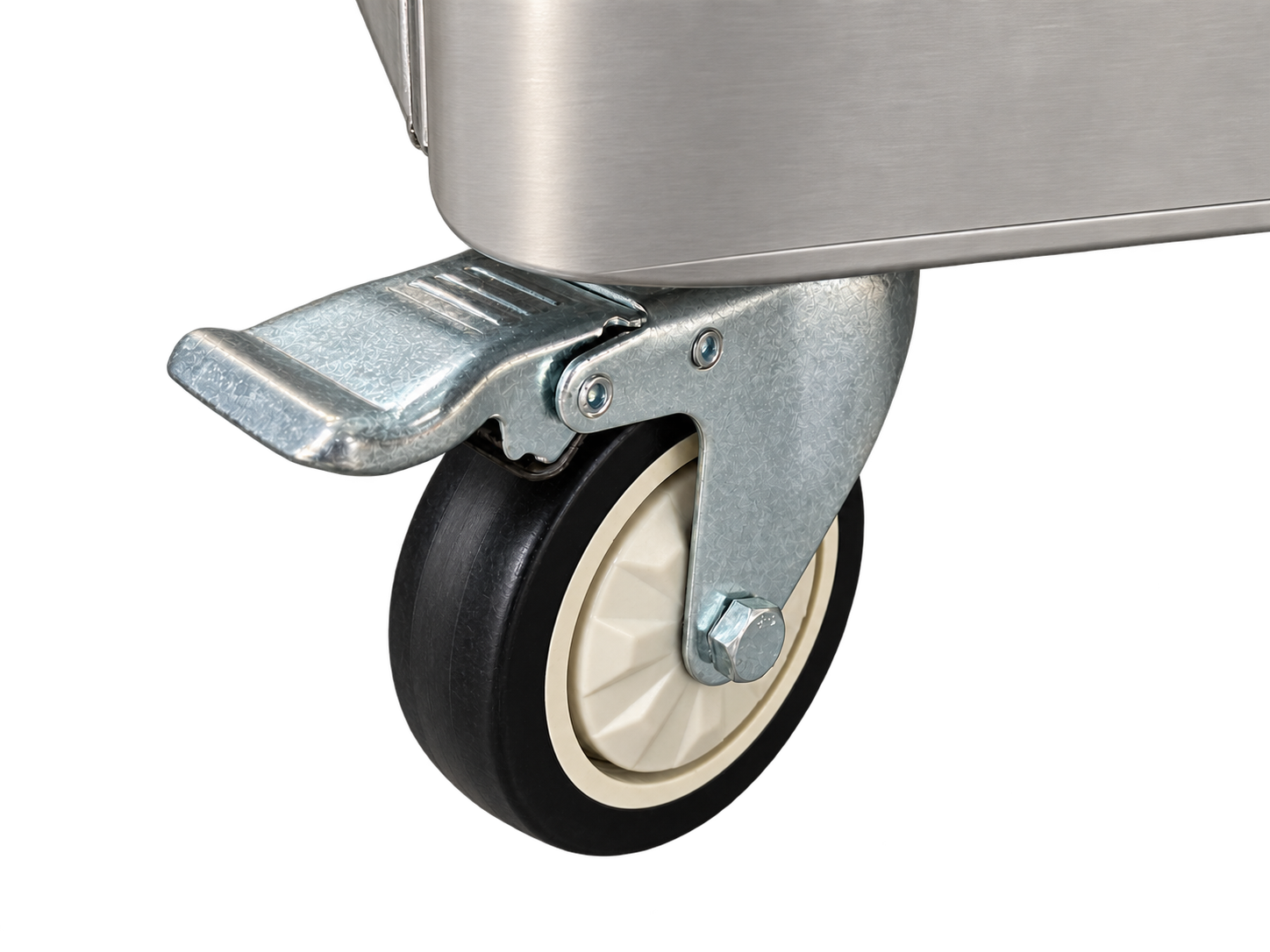

Caster detail
A close-up of the pictured caster and brake assembly.
Compare capacity options
| Specification | 30 L option | 60 L option |
|---|---|---|
| Listed capacity | 30 L | 60 L |
| Function | Heating & cooling | Heating & cooling |
| Rated power | 4.35 kW | 6.15 kW |
| Electrical options | 220 / 380 V · 50 / 60 Hz | 220 / 380 V · 50 / 60 Hz |
| Cooling options | Air cooling / Water cooling | Air cooling / Water cooling |
| Dimensions, W × D × H | 540 × 620 × 1000 mm | 580 × 660 × 1250 mm |
| Net weight | 150 kg | 240 kg |
Confirm the electrical and cooling configuration for your order. Working fill volume, cycle time and recipe suitability should be confirmed for your intended product.
FAQ
Does the machine provide both heating and cooling?
Yes. Both listed capacity options are specified for heating and cooling.
How should I choose between the two capacity options?
Share your intended product, planned batch quantity and production schedule. Compare the listed capacity with the working fill volume required for your recipe before choosing a configuration.
Can I choose air cooling or water cooling?
The catalogue lists both cooling arrangements. Confirm the required configuration with your site ventilation and water-service information.
What electrical information is needed for a quotation?
Provide your destination, available voltage, frequency and phase. The catalogue lists 220 / 380 V and 50 / 60 Hz options; the supplied electrical configuration is confirmed for the order.
Which material is specified?
The catalogue specifies 304 food-grade stainless steel. Confirm any component-specific material requirements with your quotation request.
Which cleaning instructions should I use?
Request the operating and cleaning instructions for your supplied configuration, including any required disassembly procedure.
Discuss your pasteurizer configuration
Tell us your product, planned batch quantity, destination and available utilities so we can discuss a suitable configuration.
