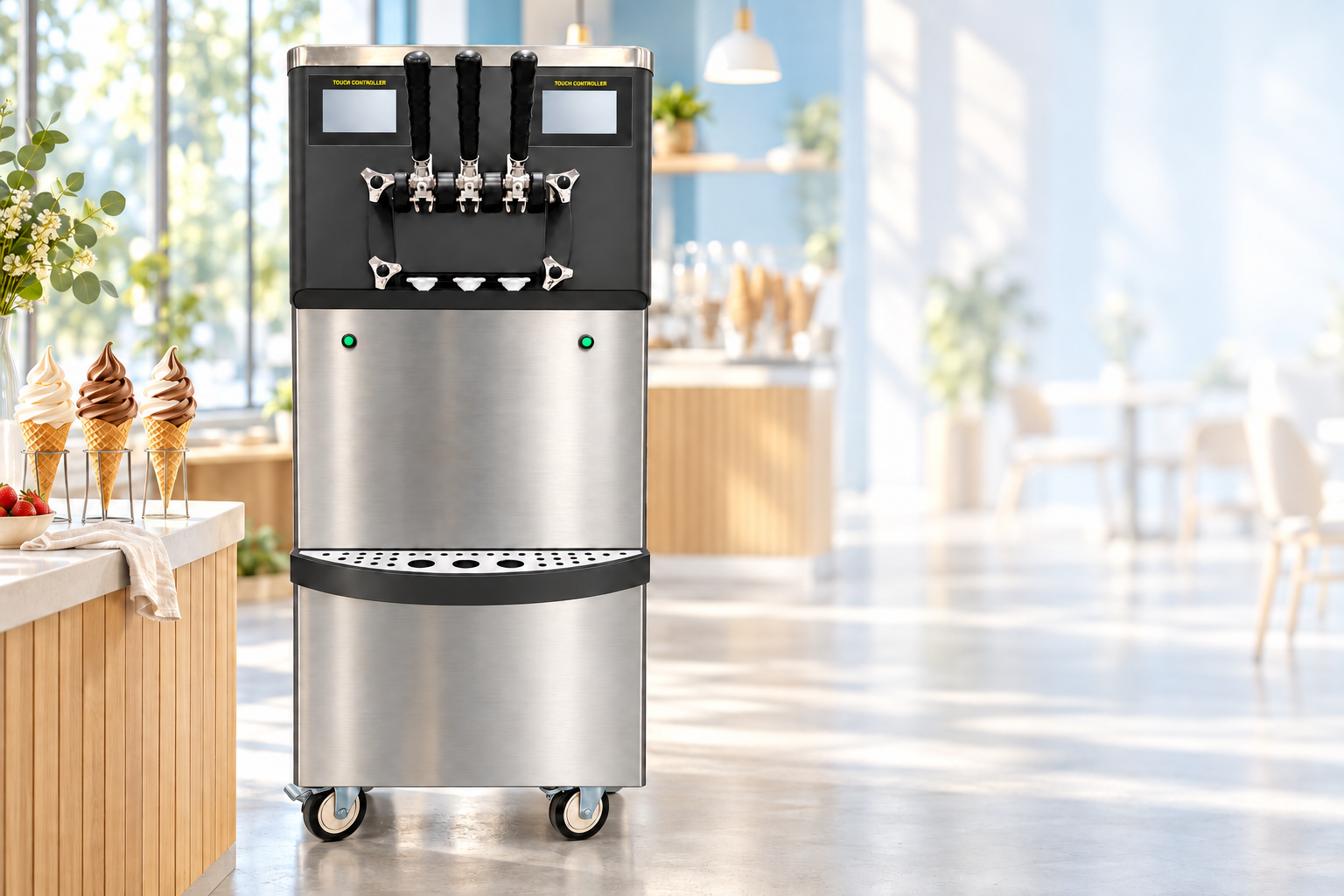

Illustrative café scene
Floor-standing Soft Serve Machine
Soft serve.
Three ways
to serve.
Two single flavors and one mixed serving from a floor-standing machine. Choose rated output of 55–66 or 60–70 L/h.
Request a quotePrice on request
2 × 10 L hoppers and 2 × 2.5 L freezing cylinders. Actual output depends on recipe, inlet temperature, ambient conditions and settings.
Serving suggestion · Illustrative image

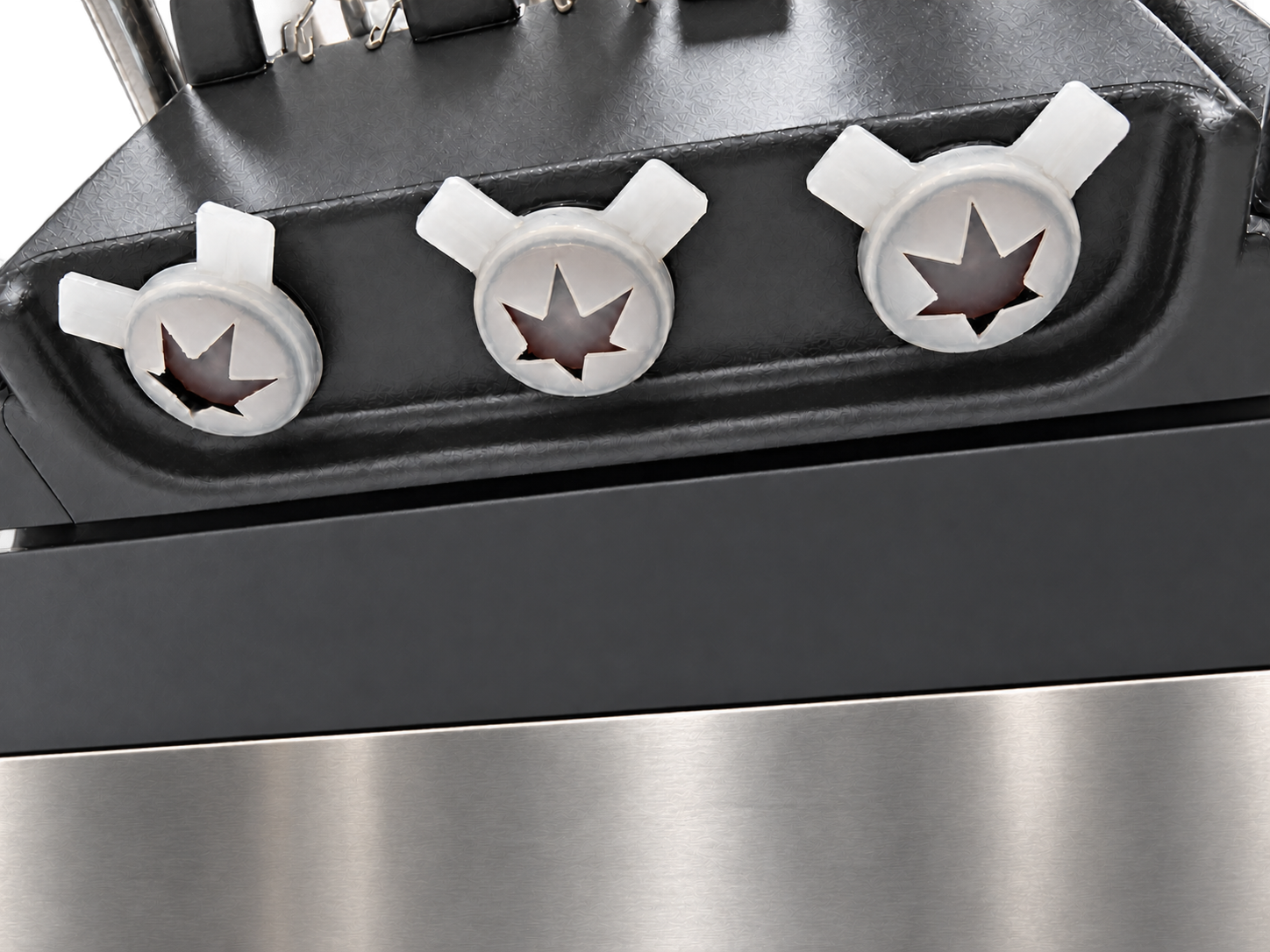

Two single flavors + one mixed serving
Two flavors, plus the mix.

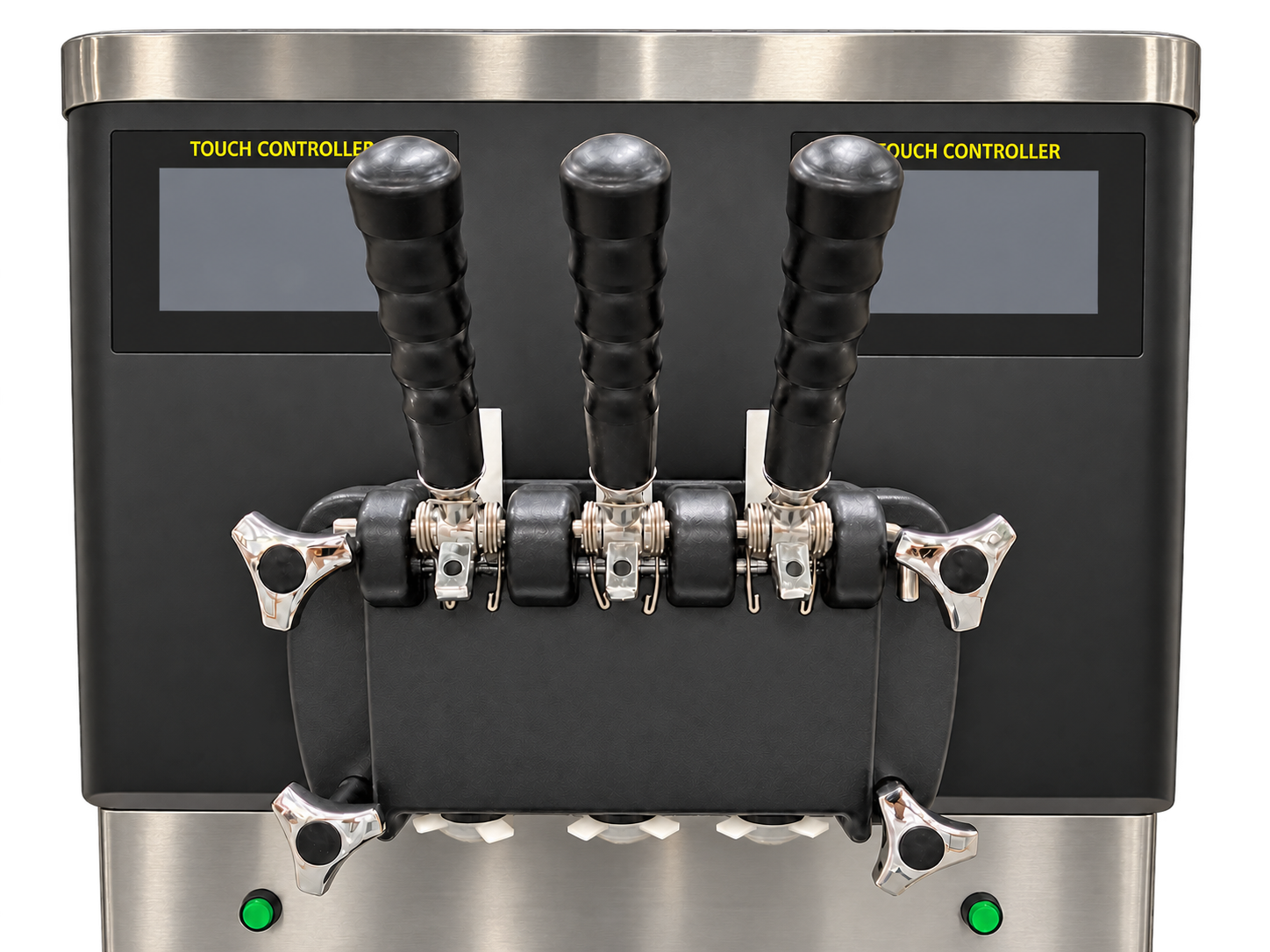

Offer two single-flavor choices and a mixed serving from the three-outlet dispensing layout.
Confirm the dispensing configuration and recipe compatibility with your order.
Controls
Control the daily serving routine.
55–66 L/h configuration: adjust serving firmness from the control panel, with an automatic turbine gearbox.
Confirm the final control functions and interface with your order.

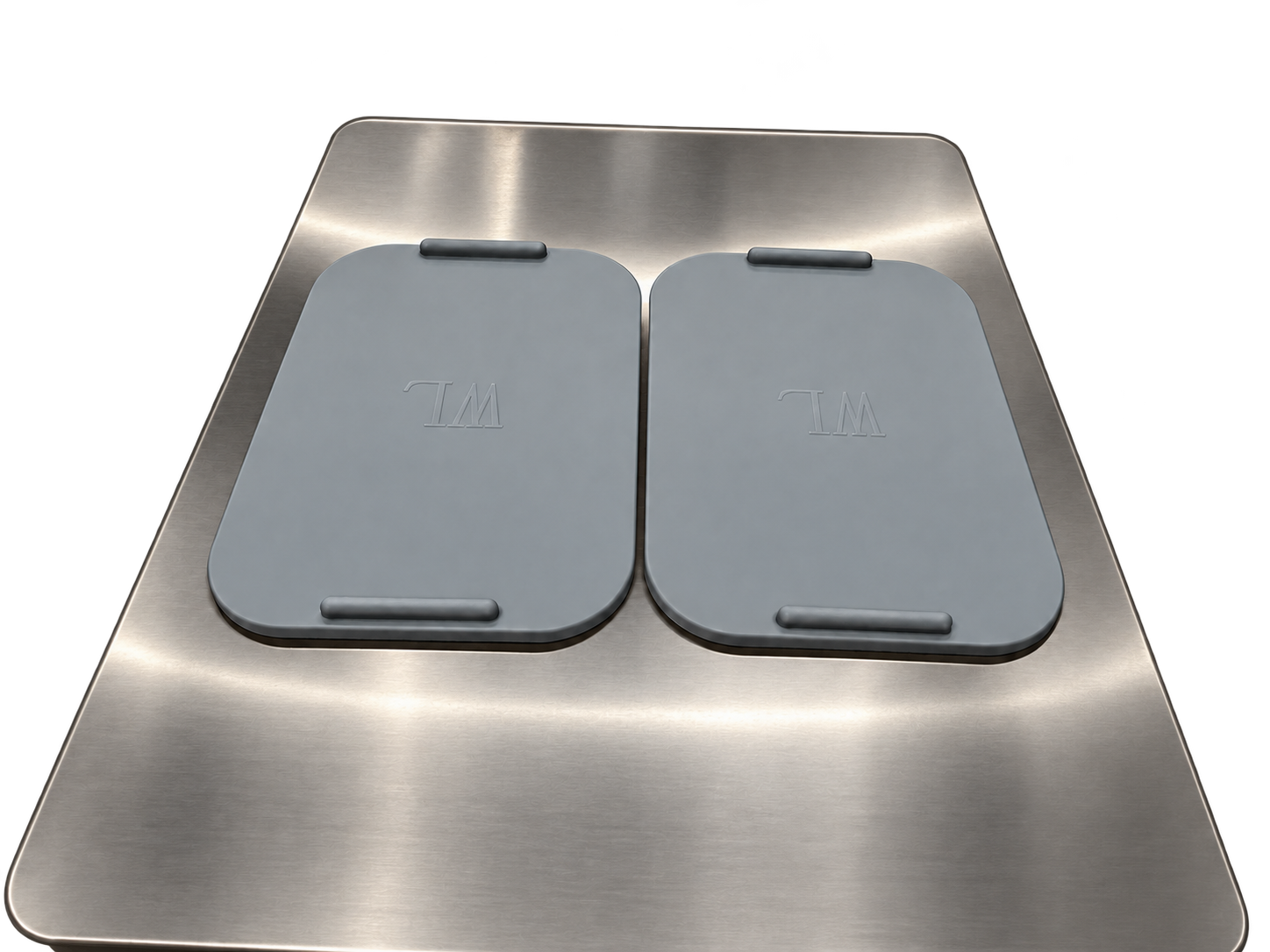

Top view
Two hoppers. A view from above.

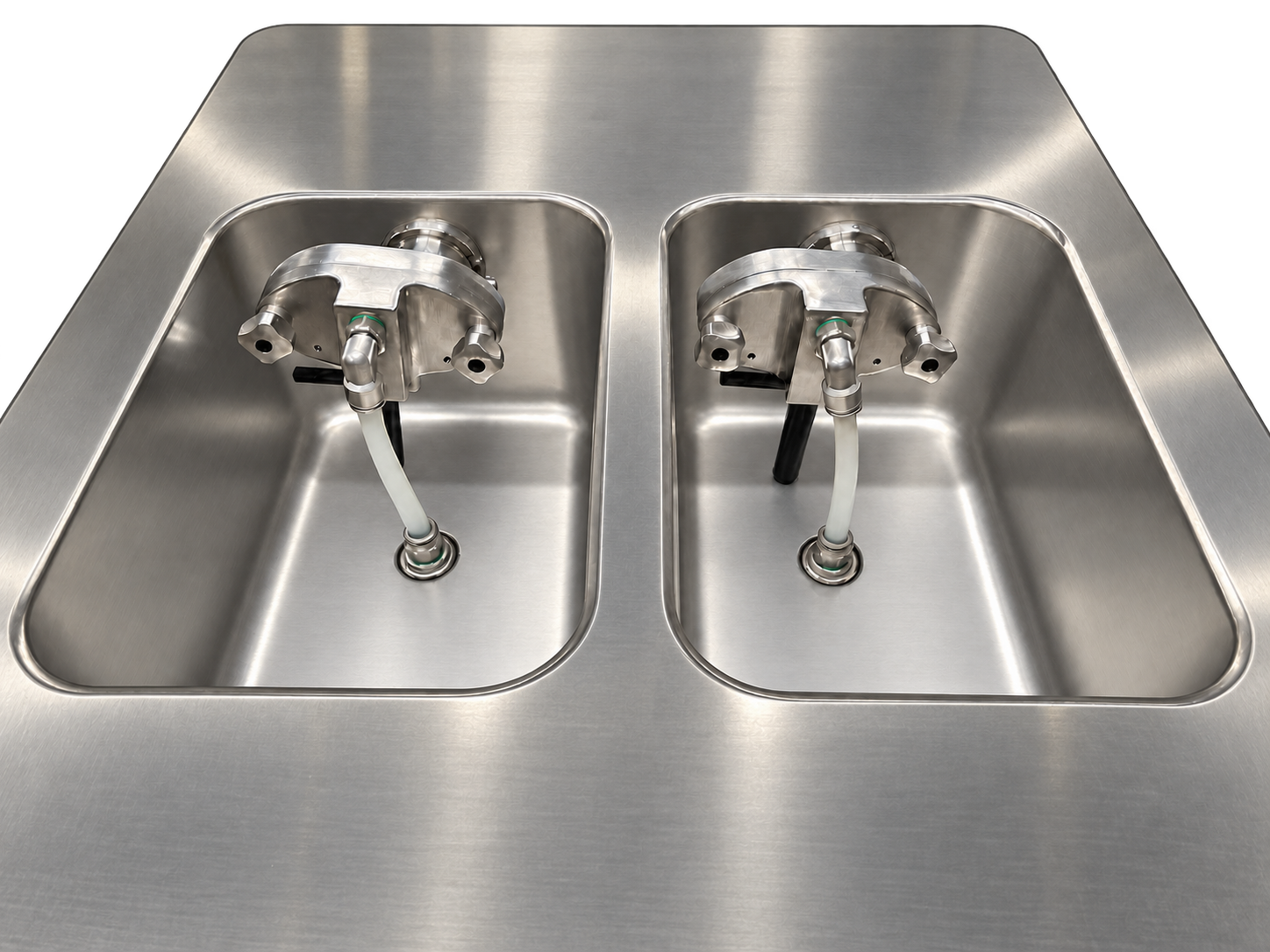

Two 10 L mix hoppers sit beneath individual lids. View the covered top and the open hopper layout.
2 × 10 L
Mix hoppers

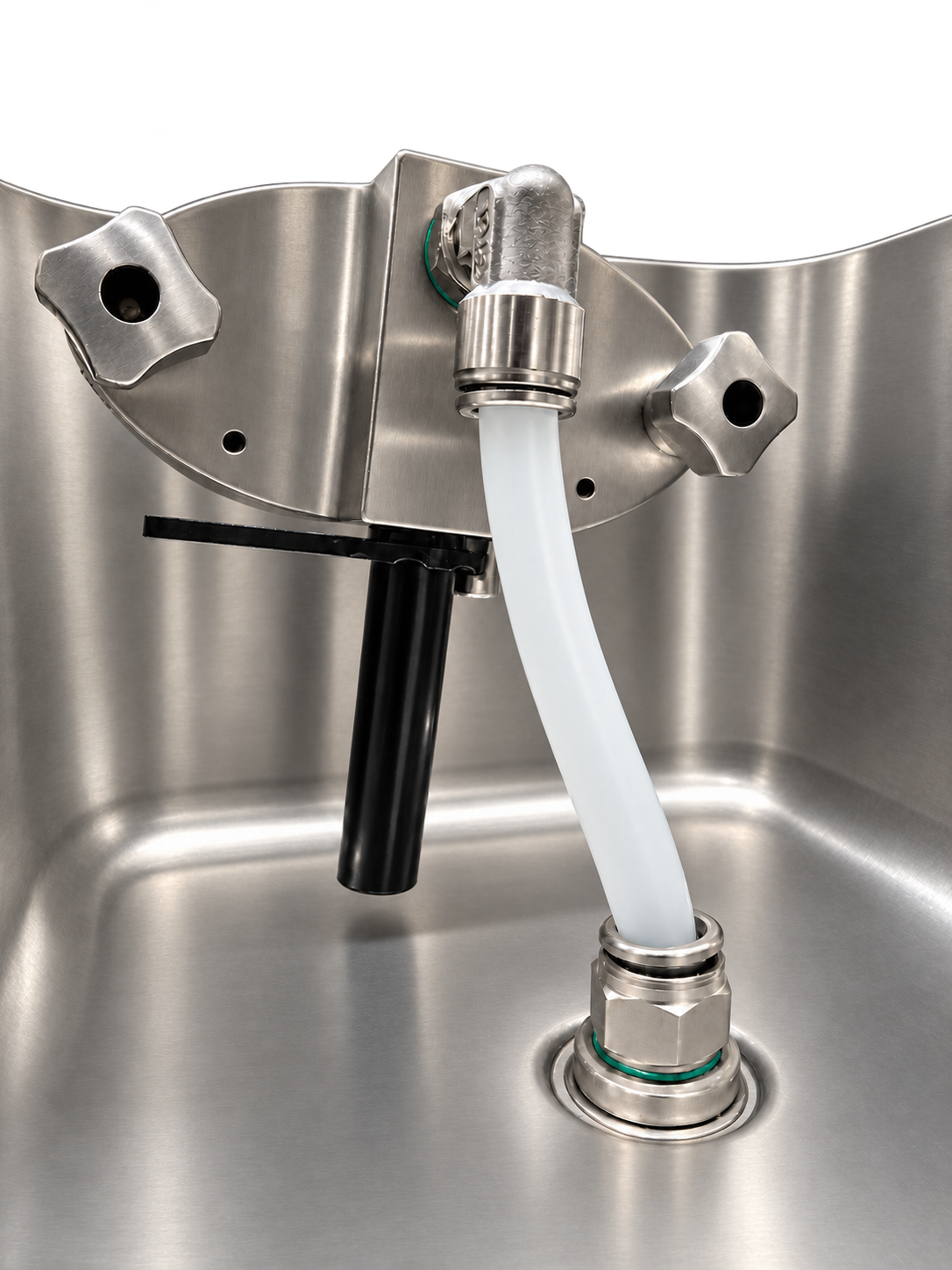

Air pump · Optional configuration
Your configuration
Specify the options for your operation.
Air pump and rainbow system options are available. Confirm each selected item in the quotation and order.
55–66 L/h configuration: optional hopper agitator, canopy, cone holder and serving table.
Options shown are not included unless confirmed in the order.
Product photo · Illustrative environment

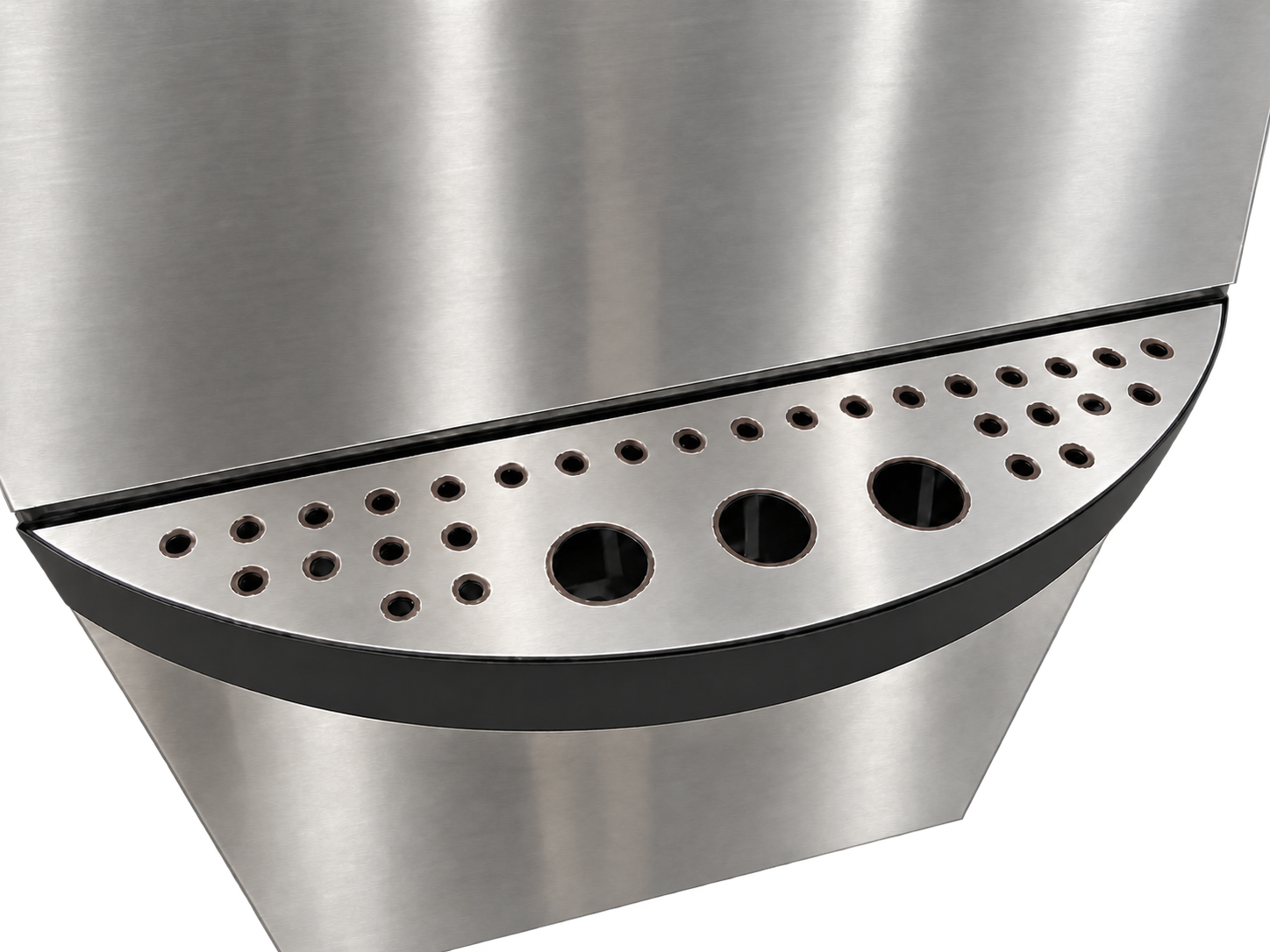

A closer look at the serving area.
A curved, perforated drip tray sits below the three dispensing outlets. See the tray surface and curved front edge in detail.

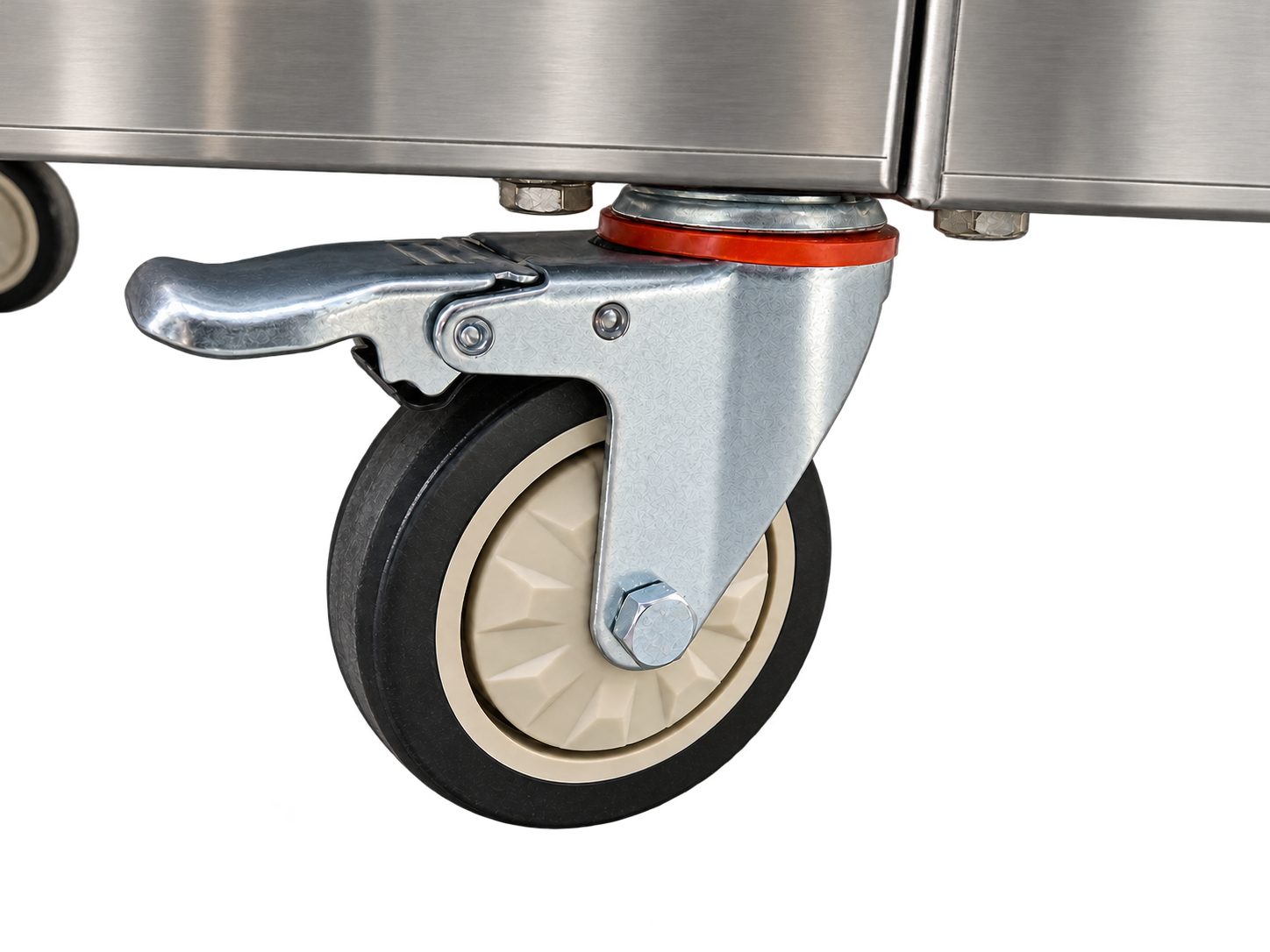

Casters & foot brake · Illustrative floor
Floor-standing cabinet
The details at floor level.
The floor-standing cabinet is mounted on casters. This close-up shows the wheel, metal bracket and foot-operated brake on the photographed unit.

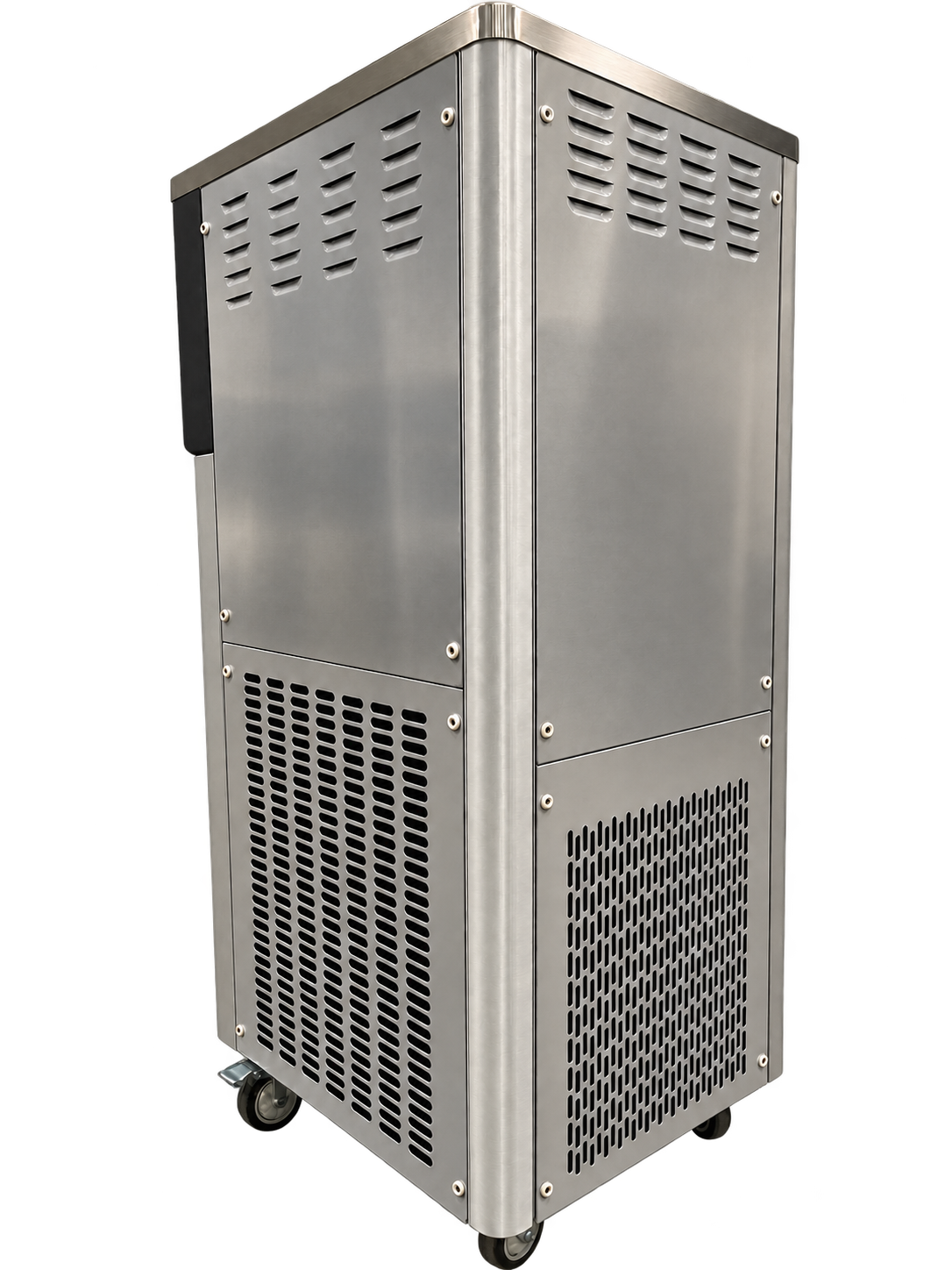

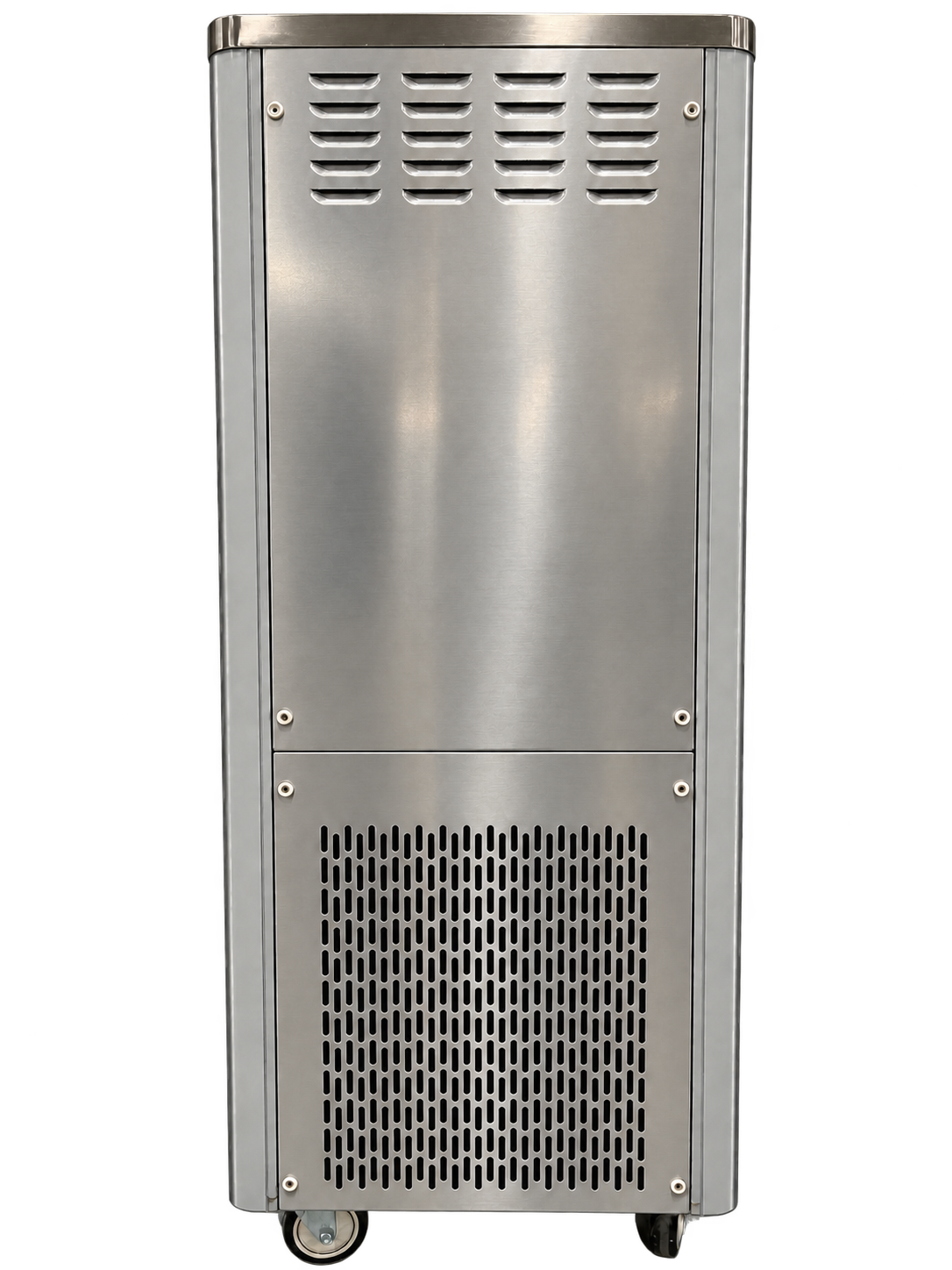

Rear & rear-quarter views
Look beyond the front.
See the rear panel and ventilation grilles from the supplied rear and rear-quarter photographs. Confirm the installation requirements for your order.
Specifications
Compare the capacity configurations.
Confirm the electrical combination, installation space and final equipment specification before ordering.
| Specification | ||
|---|---|---|
| Rated output | 55–66 L/h | 60–70 L/h |
| Mix hoppers | 2 × 10 L | 2 × 10 L |
| Freezing cylinders | 2 × 2.5 L | 2 × 2.5 L |
| Power | 2.7 kW | 2 × 2 kW |
| Dimensions | 518 × 760 × 1420 mm | 518 × 760 × 1420 mm |
| Net weight | 198 kg | 228 kg |
| Supply specifications | 220 / 380 V; 50 / 60 Hz | 220 / 380 V; 50 / 60 Hz |
Questions & answers
Before you choose.
What is the difference between output and cylinder capacity?
Rated output is 55–66 or 60–70 L/h, depending on configuration. Each machine has two 2.5 L freezing cylinders. Cylinder capacity is not the hourly output rate. Actual output depends on recipe and operating conditions.
Does 2+1 mean three independent flavors?
It means two base flavors plus one mixed serving. Confirm the final dispensing arrangement and recipe compatibility with your order.
Is the air pump included?
The air pump is listed as an option. Include it by name in the quotation and order if required. A component shown in a product photo does not confirm the standard build.
Which electrical specification should I order?
Available supply specifications are 220 / 380 V and 50 / 60 Hz. Listed power is 2.7 kW for the 55–66 L/h configuration and 2 × 2 kW for the 60–70 L/h configuration. Confirm the required combination against the final order and unit data label.
What cleaning support is listed for each configuration?
The 55–66 L/h configuration lists a removable stainless-steel beater. The 60–70 L/h configuration lists automatic self-wash assistance. Follow the instructions supplied with the selected machine for complete cleaning and sanitizing.
What information is needed for a quotation?
Share your preferred capacity, destination, available power supply, quantity and required options.
