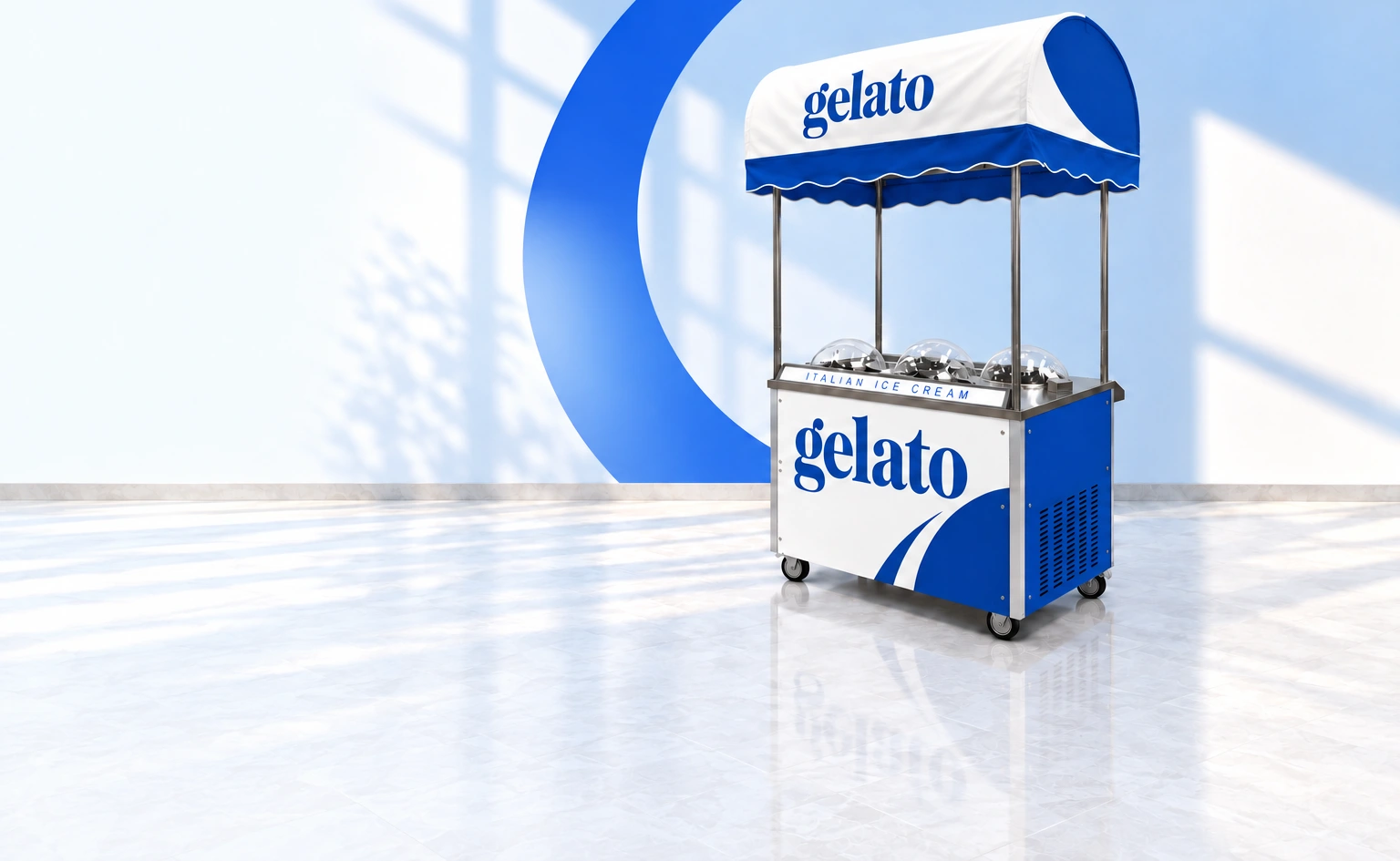

4 cylinders, front, complete integrated scene

MULTI-CYLINDER GELATO MACHINE

Gelato,in full view.

A multi-cylinder gelato machine with clear dome covers. Choose 4, 6 or 8 cylinders, each with a nominal capacity of 5 L.

Request a quote Compare configurations

4 cylinders6 cylinders8 cylinders

CAPACITY (SELECTED)4 × 5 L

PRICEPrice on request

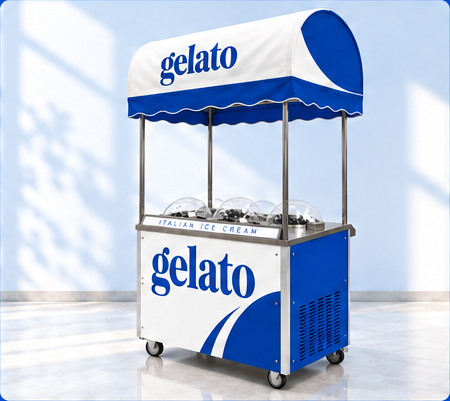

4 cylinders selected. 4 × 5 L nominal capacity, 4,000 W power. Front view.

Choose yourcylinder count.

Compare cylinder capacity, listed output and power across three configurations. Share your available space and site power for configuration advice.

4 cylinders

Cylinder capacity: 4 × 5 L
Listed output: 60–80 L/h
Power: 4,000 W

View specifications

6 cylinders

Cylinder capacity: 6 × 5 L
Listed output: 80–100 L/h
Power: 6,700 W

View specifications

8 cylinders

Cylinder capacity: 8 × 5 L
Listed output: 100–120 L/h
Power: 8,000 W

View specifications

5 L is nominal capacity per cylinder. Listed output is a catalogue reference.

A closer lookat the machine.

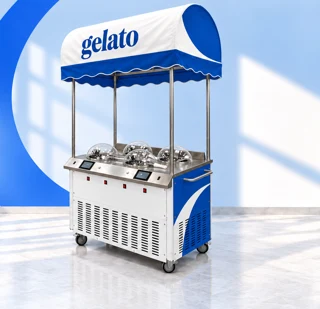

Clear dome covers, each 140 mm high, sit above the cylinders. View the operator-side control panels, stainless-steel worktop and wheeled base from different angles.

Clear dome covers on the stainless-steel worktop — **140** mm
Clear dome covers

Wheeled machine base — Stainless-steel worktop & wheeled base

Plan yourgelato serving space.

For a gelato shop, restaurant dessert station or event, tell us your menu, available space and power supply.

Gelato machine in an illustrative gelato shop setting

Gelato machine in an illustrative restaurant dessert station setting

Gelato machine in an illustrative event service setting

Illustrative settings. Configuration depends on your space and site power.

Specificationsfor your configuration.

All three configurations are 810 mm wide, with 140 mm-high clear dome covers.
Select the cylinder count to view matching specifications. Confirm electrical
requirements and overall installation height with your quotation.

810mmMachine width

140mmClear dome cover height

4 cylinders6 cylinders8 cylinders

4 cylinders — specifications
Cylinder capacity	4 × 5 L
Listed output	60–80 L/h
Power	4,000 W
Voltage options	110 V / 220 V
Frequency options	50 Hz / 60 Hz
Catalogue dimensions	1100 × 810 × 900 mm
Net weight	188 kg
Gross weight	221 kg

Each cylinder has a nominal capacity of 5 L. Listed output is a catalogue reference; confirm the working batch charge and output for your recipe.

Electrical configurations are confirmed with the quotation.

Catalogue height inclusion of the dome is unconfirmed. Confirm overall installation height, including the four-cylinder canopy, with your quotation.

Before
you
choose.

Find answers about cylinder count, capacity, electrical requirements and the information needed for a quotation.

Is this one product with three configurations?

Yes. The series offers 4-, 6- and 8-cylinder configurations. Capacity, listed output, power and dimensions vary by configuration.

Does 5 L mean the amount I should load?

5 L is the nominal cylinder capacity. Confirm the working fill quantity for your recipe and operating procedure before use.

How should I compare the three sizes?

Compare the cylinder count, listed output, power and available installation space. Share your menu and service requirements when requesting a quotation.

What electrical information should I provide?

Provide your site voltage, frequency, phase and connection requirements so the electrical configuration can be checked.

What do you need to prepare a quotation?

Share the preferred cylinder count, destination, site power and available space. Include your menu and any appearance requirements.

Let’s matchthe machineto your space.

Tell us your preferred cylinder count, destination and site power. Add your menu or layout requirements to help define the configuration.
