Slim Countertop
Soft Serve Machine
One signature flavor. A slimmer counter setup.
A 260 mm-wide, single-flavor machine with rated output of 15–20 L/h.
Actual output depends on the recipe and operating conditions. Allow the ventilation and service space specified in the installation instructions.
Price on request
Request a quoteSingle-flavor
service.
Texture you can
adjust.
One handle and one outlet keep service focused. Adjust product hardness through the controls within the machine and recipe limits.
Confirm the controller version for your order.
EASY DAILY CARE
READY TO FILL.
DESIGNED
FOR ACCESS.
A 7 L hopper feeds a 1.8 L freezing cylinder. The stainless-steel body and removable stainless-steel beater provide access for routine cleaning.
Follow the supplied manual for disassembly, cleaning and sanitizing.
shown; optional
configuration.
PLAN THE SPACE.
CONFIRM
THE CONFIGURATION.
| Rated output | 15–20 L/h |
|---|---|
| Hopper / freezing cylinder | 7 L / 1.8 L |
| Machine dimensions | 260 × 680 × 790 mm |
| Machine width | 260 mm |
| Net weight | 57 kg |
| Rated power | 1.2 kW |
| Electrical versions | 110 V or 220 V, 50/60 Hz; order-specific |
| Refrigerant | R22; R290 or R410A configurations on request |
Plan the space. Confirm the configuration.
Confirm voltage, frequency, phase, plug and circuit-breaker requirements before ordering. Use order-specific packing dimensions and gross weight for freight calculations.
Confirm the refrigerant configuration in the quotation.
Questions before you order.
01What is the hourly output of this machine?
The rated output is 15-20 L/h. This should not be converted into a guaranteed number of servings, because actual output depends on the recipe, ambient and inlet temperatures, and dispensing pattern.
02How many flavors and dispensing outlets does it have?
This machine is a single-flavor countertop soft-serve machine with one dispensing handle and outlet. Confirm any special dispensing components separately in the quotation.
03What are the freezing-cylinder and hopper capacities?
The freezing-cylinder capacity is 1.8 L and the hopper capacity is 7 L.
04What are the machine dimensions and weight?
The machine measures 260 × 680 × 790 mm and has a net weight of 57 kg. Use the final order-specific package dimensions and gross weight for freight calculations rather than the machine dimensions.
05What power supply is required, and can it switch between 110 V and 220 V?
This machine is offered in order-specific 110 V or 220 V, 50/60 Hz versions with a rated power of 1.2 kW; it should not be treated as a field-switchable dual-voltage machine. Confirm the nameplate voltage, phase, rated current, plug and circuit-breaker requirements before ordering.
06Is the air pump standard equipment?
No, the air pump is optional and must be listed separately in the quotation. If required, also confirm its configuration, operating requirements and parts-supply arrangement.
07What other options are available?
Available options include a keep-fresh system, hopper agitator, rainbow system, air pump and cone holder. Select them according to your menu and service model, and ensure every option appears in the final configuration sheet.
08Can it make frozen yogurt or non-dairy products?
The machine is intended for soft ice cream and frozen yogurt. Non-dairy and other special recipes should be trialed first, with the acceptable sugar, fat, total-solids, viscosity and particle ranges confirmed in writing.

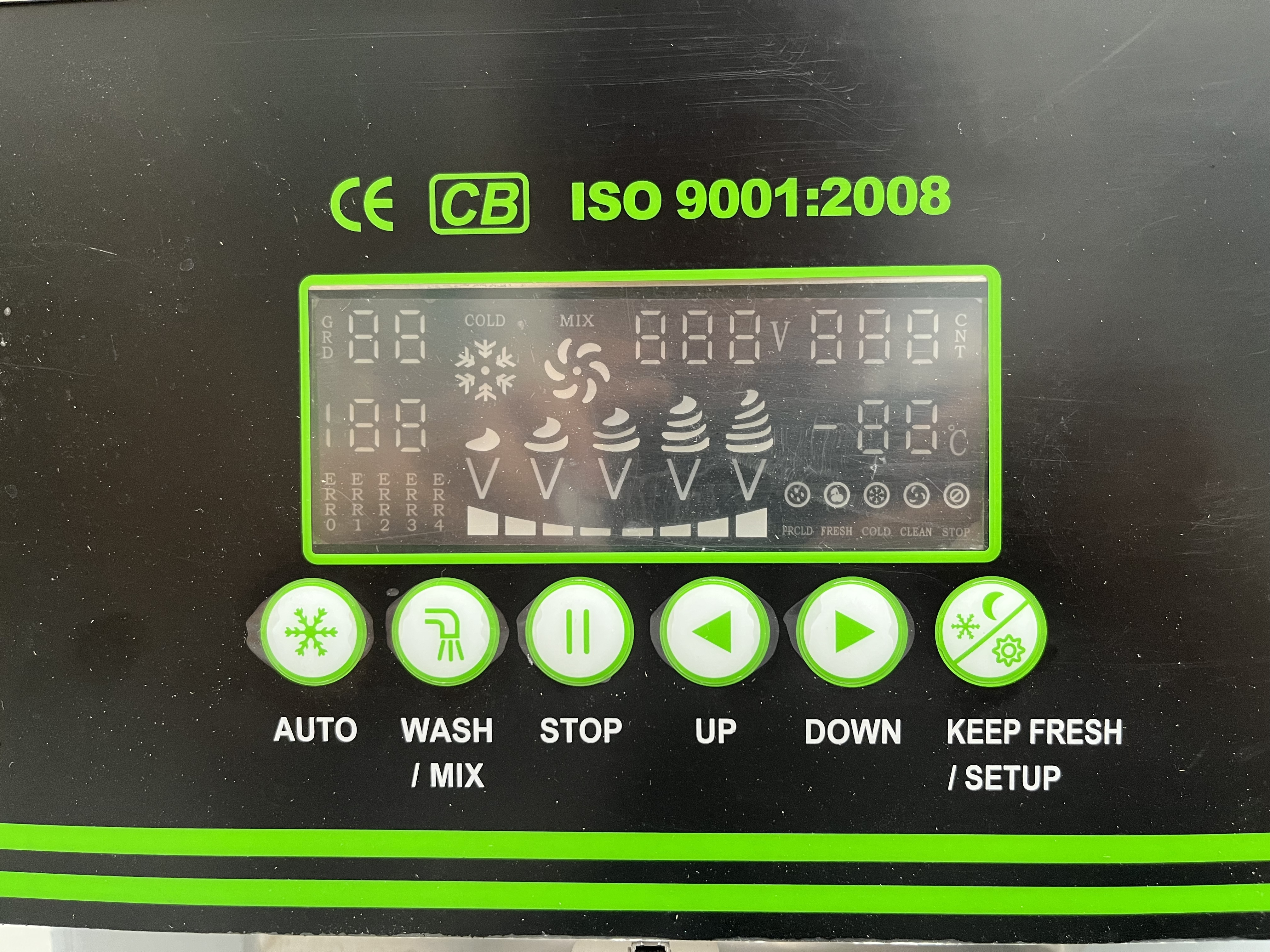

09Can the control panel adjust product hardness?
Yes, the control panel supports product-hardness adjustment. Confirm the exact interface and controller version through the final quotation and current product photos.
10Is the machine easy to clean, and how often should it be cleaned?
The stainless-steel body and removable stainless-steel beater help provide access to surfaces that require cleaning. Cleaning frequency, disassembly steps, sanitizer type and concentration must follow the supplied manual and local food-safety requirements.
11How much ventilation clearance is required?

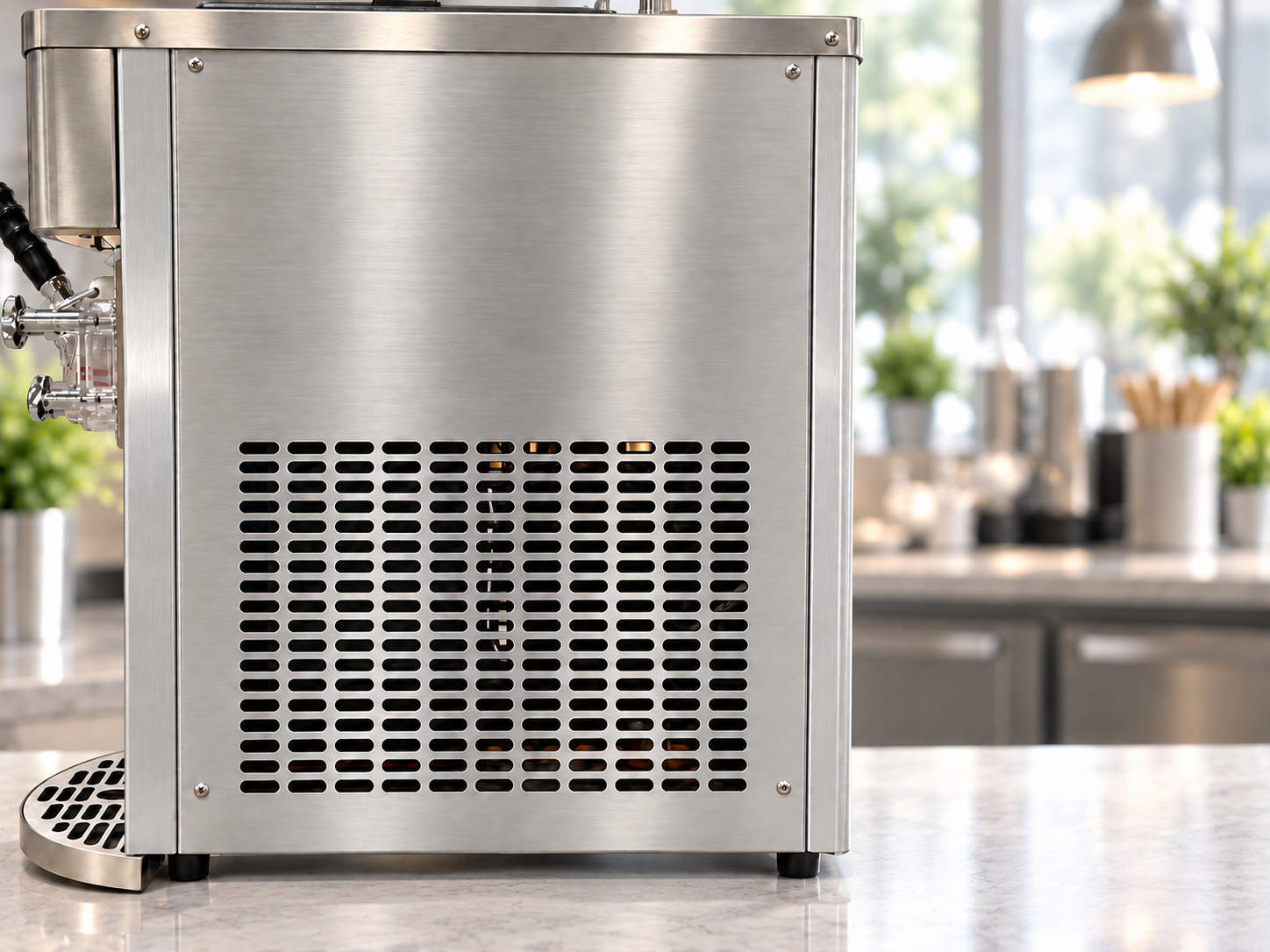

The 260 mm figure is the machine width, not the total installed width, and it does not mean the unit can be placed against a wall or enclosed in cabinetry. Request the current installation drawing and allow the specified ventilation, electrical and service space.
12Can it be installed in an ice cream truck or food trailer?
Yes, with a generator and a vehicle-specific installation review. With a net weight of 57 kg and rated power of 1.2 kW, confirm starting current, generator capacity, ventilation, mounting, vibration conditions and applicable warranty terms.
13Which refrigerant does it use, and can this affect export or servicing?
The standard specification uses R22 refrigerant. R290 or R410A configurations are available on request. Confirm the refrigerant configuration and charge for the order, and verify destination-market requirements before shipment.
14How should CE and ISO 9001 documentation be verified?
Request the model-specific EU Declaration of Conformity, applicable reports, certificate number and scope during procurement. ISO 9001 covers an organization’s quality-management system; it is not a product-performance certification and does not replace the technical documentation required for CE conformity in the target market.
15What warranty and after-sales service are included?
A one-year warranty and lifetime after-sales service are offered. Define the applicable coverage in the signed contract, including parts, labor, wear items, refrigerant, travel costs, remote support, local service arrangements and the warranty start date.
Start with your space
and menu.
Tell us your destination country, available power supply, expected demand and required options. We will discuss the configuration for your project.
